The Donaldson Torit® PowerCore® CP Series dust collector is perfectly matched to handle fibrous and fluffy dust. Airflow: 1,200 to 27,000 m3/h (single module), >27,000 m3/h (multiple modules). Combined with innovative PowerCore filter packs and proprietary compact oblique pulse cleaning system, the PowerCore dust collector delivers high filtration efficiencies. Donaldson’s advanced dust collection technology is becoming the new standard for dust control.

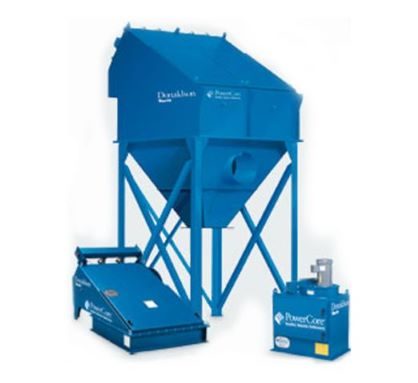

The PowerCore dust collector comes in two models: The CPC dust collector (stand-alone unit) is up to 50 % smaller than traditional baghouses and can be ducted to many different applications. The CPV (vent unit) is up to 70 % smaller than traditional bag venting units and can be used on silos, conveyor transfer points, conveyor discharges, blenders and mixers.
At the core is PowerCore , the most innovative filtration technology from Donaldson. PowerCore filter packs combine proprietary Ultra-Web nanofibre technology with new media packaging expertise, creating a revolutionary filtration technology to ensure efficient dust control.
An application requiring 81 filter bags (2,4 m) in the past now only needs 12 PowerCore filter packs (178 mm). Fewer filters mean lower filter changeout costs and faster changeouts.
The pulse accumulators are shaped to optimize the pulse energy without restricting the airflow and wasting energy. The pulse accumulators also serve as a filter retention mechanism, securing the filter pack in place and ensuring optimum gasket compression.
PowerCore collectors include a Compact Oblique Pulse Cleaning System, a Donaldson proprietary technology. The resulting pulse flow effectively covers the entire media pack, easily pulses the dust out of the fluted channels, keeping the pressure drop low, and prolonging filter life.
PowerCore filter packs obround shape, in conjunction with Donaldson proprietary Ultra-Web media, trap more dust on the surface of the media flutes than conventional filter bag materials. Surface loading greatly promotes filter cleaning.
