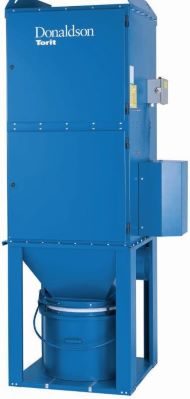

Unimaster UMA
A self-contained collector with everything needed to begin collecting dust, the Unimaster comes complete with fan and fan motor, automatic shaker and shaker motor, and system controller making installation quick and easy. Since the automatic shaker cleans the bag filters, there is no need for expensive compressed air. Ideal for intermittent operations in plant processes, the Unimaster can be used as a central system or at the point of dust generation.
- Dust capture at all manufacturing points and flexibility of operation
- Compact design with flat envelope shaped multipad filters for high capacity
- Range of fabrics available for filter to suit applications
- Advanced fan design with reduced noise levels
- Easy to install/connect and service
- No requirements for compressed air
Highly adaptable, the Donaldson Torit DCE Unimaster dust collector is ideal for intermittent operations in plant processes. Several space-saving units can be placed at dust generation points resulting in total dust capture from the manufacturing processes:
- Venting unit, also with dust container
- Sack tipping unit
- Hopper unit
Utilising high performance Unimaster filters, contaminated air is drawn in through the inlet to the filter by the fan. Initially, some pre-separation takes place as heavier dust particles lose momentum and fall into the hopper. Finer dusts are carried up to the filter elements and retained on the outer surface of the filter fabric. The cleaned air passes through the filter fabric into the fan chamber and is discharged. At the end of the process or of a shift the fan is switched off and the filter fabric cleaning cycle commences: Dust is dislodged from the filter elements and falls into the collector. This cleaning cycle requires no compressed air, reducing the services required and operating costs.
- Acoustic diffusers
- Filtration media
- Pressure balance pipe
- Secondary filter or absolute filter
- Static earthing
- Explosion relief
