Air Knocker Controller
Opecon AOC-1B (Pneumatically Operated)
This is the simplest control panel that is operated without electricity.
Typical Applications
- Sewage sludge fuel production facilities
- Dust hopper in waste treatment plants
- Recycle fuel (Compressed wood) supply hoppers
- Glass cullet storage hoppers
AOC-1B Controller
Features
- Fully pneumatic operated, no electricity required
- Economical and compact design
- Operate continuously with adjustable stroke interval
- Operate up to three air knockers using relay piping
- Suitable for outdoor installation
Compact design
Control knob for stroke interval adjustment

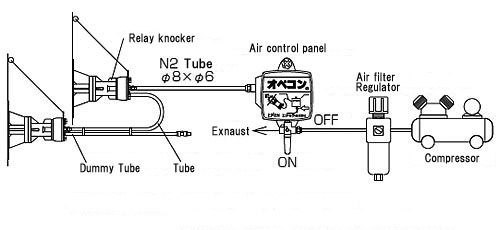

Operate up to three air knockers using relay piping
Technical Data
| Model | Construction | Working Pressure (MPa) | Working Fluid Temperature (℃) | Stroke Cycle (times / min) | Approximate Dimensions (L x B x H) (mm) | Mass (kg) |
|---|---|---|---|---|---|---|
| AOC-1B | Indoor/Outdoor | 0.3 ~ 0.7 | 5 ~ 50 | 12 ~ 60 | 171 x 67 x 200 | 1.4 |
* Since the controller is pneumatically controlled, the actual stroke cycle may vary slightly.
* Not suitable for RKV/RKD120PA.
