Air Knocker Controller
HKA5000A (Pneumatically Operated)
This controller is operated without electrical supply and suitable for installation at hazardous area where there is a risk of explosion.
Typical Applications
- Use for controlling knocker and mini blaster in the explosion-proof area in iron-making plant
- Used for controlling knocker in the resin pellet production line (explosion-proof area) in petrochemical plant
- Recycle fuel (Compressed wood) supply hoppers
- Glass cullet storage hoppers

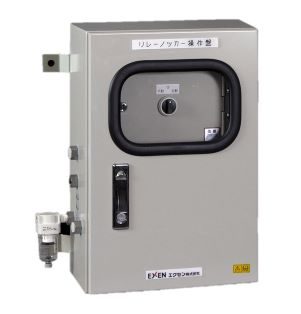

HKA5000A
Features
- Fully pneumatic operated, no electricity required
- Ideal for use in hazardous area
- Adjustable stroke interval and duration
- Capable of controlling multiples air knockers simultaneously
- Operate up to two sets of air knockers
- IP54 rated, Suitable for outdoor installation

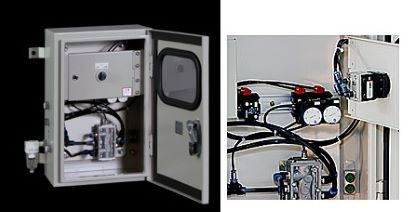

Pneumatic timers for interval and duration adjustment
Operate up to two sets of air knockers
Technical Data
| Model | IP Rating | Incoming Supply | Timer Range | Working Pressure (MPa) | Maximum Number of unit per set | Mass (kg) |
|---|---|---|---|---|---|---|
| HKA5000A | IP 54 | Compressed air | ON : 10 ~ 180 sec OFF : 0.1 ~ 30 sec | 0.3 ~ 0.7 | RKVS15 10 units RKV/S20P 8 units RKV/D/S30PA 8 units RKV/D/S40PA 6 units RKV/D/S60PA 6 units RKV/D/80PA 4 units RKV/D/100PA 4 units | 12.0 |
